Automatic Tin Paste Printing Machine

Brand

Model

Q'ty

 Max Printing Size

Min Printing Size

 Printing speed

Printing Pressure

 Finetune Range
EKRA

X5

 1 460 x 460mm

80 x 50mm

 5-199mm/sec

0-240 N/ ±0.04bar

Automatic Adjust

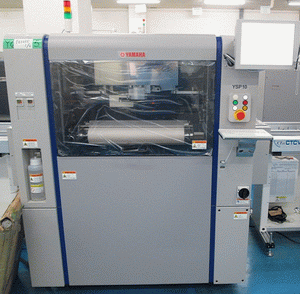

YAMAHA

YSP10

 1 510 x 460mm

50 x 50mm

 2-200mm/sec

5-200 N

 Automatic Adjust
YAMAHA

YCP10

 1 510 x 460mm

50 x 50mm

 2-200mm/sec

2-200 N

 Automatic Adjust

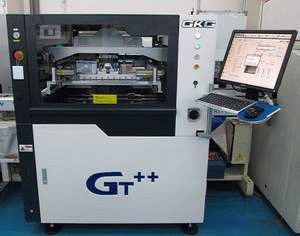

TKK GT++ 1 510 x 510mm

50 x 50mm

 6-200mm/sec

0.5-10 Kg

 Automatic Adjust

　

Automatic Mounter

Brand

Model

Q'ty

 Accuracy Speed
YAMAHA YS12 4 Chip / 3σ± 0.03mm 0.1sec / Chip
YAMAHA YS12F 1 Chip / 3σ±0.03mm
QFP / 3σ±0.03mm		 0.18sec / Chip
0.55sec / QFP
YAMAHA YSM20 1 Chip / 3σ±0.025mm
QFP / 3σ±0.025mm		 0.08sec / Chip
0.35sec / QFP

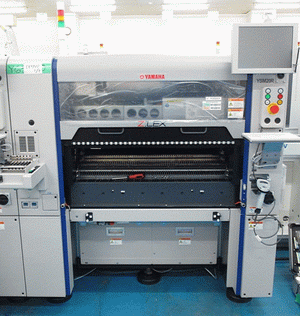

YAMAHA YSM20R 2 Chip / 3σ±0.025mm
QFP / 3σ±0.025mm		 0.038sec / Chip
Panasonic CM101-D 2 Chip / ±40μ
QFP / ±35μ		 0.144sec / Chip
0.8sec / QFP
Panasonic DT401-F 1 Chip / ±50μ
QFP / ±35μ		 0.7sec / Chip
0.9sec / QFP

　

Reflow

Brand

Model

Q'ty

Temperature Area

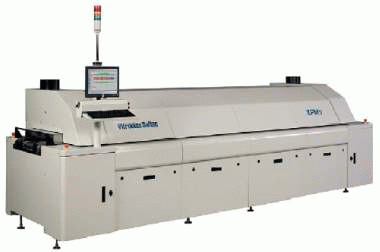

VITRONICS

XPM3

 1

Up 8 Down 8  2Cooler

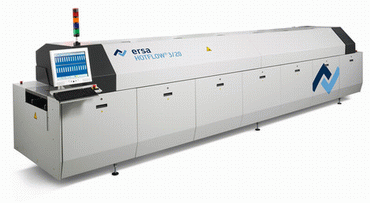

Ersa HOTFLOW 3/20 1

Up 10 Down 10  3Cooler

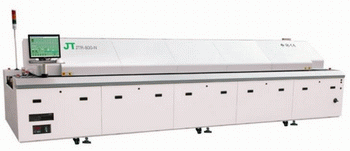

TKK JTR-1000-N 2 Up 10 Down 10  3Cooler

　

AOI Automatic Optics Inspection Machine

Brand

Model

Q'ty

PCBA Inspection Maximum Size and Height
TRI TR7501DT 1 (L) 33 cm x (W) 25cm x (H) 2cm

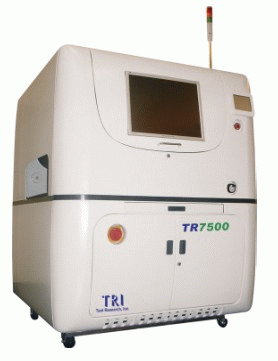

TRI TR7500 1 (L) 51 cm x (W) 46cm x (H) 4cm
TRI TR7700L SIII DT 3 (L) 51 cm x (W) 46cm x (H) 2cm

　

SPI Tin Paste Thickness Inspect Machine

Brand

Model

Q'ty

Temperature Area
TRI TR7007D 1

Minimum 50 x 50 mm

Maximum 510 x 460 mm

Board Thickness

0.6 mm ~ 5 mm
TRI TR7007 SII 1

Minimum 50 x 50 mm

Maximum 510 x 460 mm

Board Thickness

0.6 mm ~ 5 mm

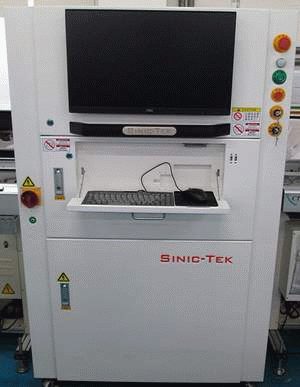

TKK SINIC-TEK 2

Minimum 50 x 50 mm

Maximum 450 x 350 mm
GENITEC

GAM70

 1

(L) 30 cm x (W) 26.4cm

　
